Hager
ADM470G
Earth leakage circuit breaker
Manufacturer part number: ADM470G
Serie: HACO
Type: ADM470G
EAN-code: 3250611028697
SKU Omnical: 2294818
Stock: 0.
Estimated lead time: 5 days *
PreOrder
H02
€
261,00
per item
€
169,65
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

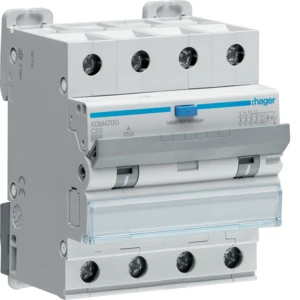

ADM470G Hager Earth leakage circuit breaker
Hager Earth leakage circuit breaker Aardlekautomaat 4-polig 20 A C-karakteristiek 6 kA, 30 mA klasse A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles (total)
4
Number of protected poles
4
Rated current
(A)
20
Rated fault current
(A)
0.03
Release characteristic
C
Concurrently switching neutral conductor
No
Leakage current type
A
Rated short-circuit breaking capacity according to EN 60898
(kA)
6
Rated voltage
(V)
400
Current limiting class
3
Frequency
50 Hz
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
70
Degree of protection (IP)
IP2X
Suitable for flush-mounted installation
Yes
Surge current capacity
(kA)
3
Voltage type
AC
Anti-nuisance tripping version
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Rated short-circuit breaking capacity Icn according to EN 61009-1
(kA)
6
Disconnection characteristic
Undelayed
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 40
Connectable conductor cross section solid-core
(mm²)
1 - 25
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Flush-mounted installation
Yes
Stock and logistics
Height
80 mm
Width
80 mm
Depth
100 mm
Packaging
box
Weight
0.446 kg
HS code
85362010
Country of Origin
PL
