Hager
BDE04089005

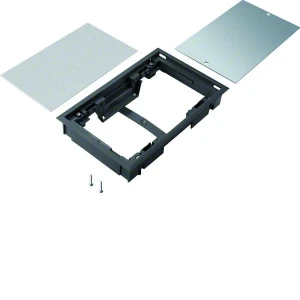

Device installation insert for underfloor-installation
Manufacturer part number: BDE04089005
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002245187
SKU Omnical: 2294991
Stock: 0.
Estimated lead time: 9 days *
PreOrder
Q06
€
58,50
per item
€
39,72
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
BDE04089005 Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Deksel blind E04 147x247mm zwart voor 8mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
0
Material
Polyamide (PA)
With opening carpeting
Yes
Depth of flooring recess
(mm)
8
Protective frame carpeting
Yes
Min. built-in depth
(mm)
53
Colour
Black
RAL-number
9005
Length external dimension
(mm)
161
Width outside dimension
(mm)
161
Length built-in dimension
(mm)
147
Width built-in dimension
(mm)
247
Cover model
Other
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
0
Number of inlets
0
With cable outlet in cover
No
Material housing
Plastic
Surface protection housing
Other
Material cover
Plastic
Surface protection cover
Galvanized
Surface treatment cover
Other
Cover load
(kN)
1.5
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Packaging
box
Weight
0.95 kg
HS code
73269098
Country of Origin
DE
