Hager
BF425N

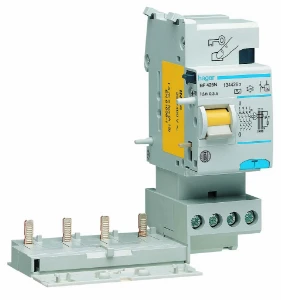

Residual current circuit breaker (RCCB) module
Manufacturer part number: BF425N
Serie:
Type: BF425N
EAN-code: 3250611364504
SKU Omnical: 2295009
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
270,00
per item
€
175,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
BF425N Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement 4-polig 25 A 300 mA klasse A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
230 - 400
Nominal current
(A)
25
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Connectable conductor cross section solid-core
(mm²)
1 - 10
Connectable conductor cross section multi-wired
(mm²)
1 - 6
Anti-nuisance tripping version
No
With interlocking device
No
Degree of protection (IP)
IP20
Pollution degree
2
Ambient temperature during operating
(°C)
-5 - 40
Stock and logistics
Height
112 mm
Width
80 mm
Depth
114 mm
Packaging
box
Weight
0.21 kg
HS code
85363030
Country of Origin
FR
