Hager
BFH480E
Residual current circuit breaker (RCCB) module
Manufacturer part number: BFH480E
Serie:
Type: BFH480E
EAN-code: 3250611360018
SKU Omnical: 2295011
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
478,00
per item
€
310,70
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

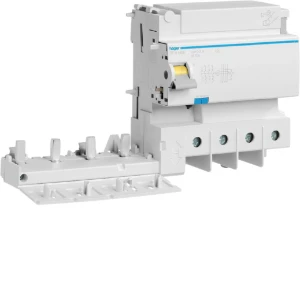

BFH480E Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement 4-polig 125 A 300 mA high immunity
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
240 - 415
Nominal current
(A)
125
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
Other
Surge current capacity
(kA)
3
Frequency
50 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Connectable conductor cross section solid-core
(mm²)
10 - 70
Connectable conductor cross section multi-wired
(mm²)
10 - 50
Anti-nuisance tripping version
Yes
With interlocking device
No
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 60
Stock and logistics
Height
92 mm
Width
141 mm
Depth
238 mm
Packaging
box
Weight
0.937 kg
HS code
85363030
Country of Origin
FR
