Hager
BP363N

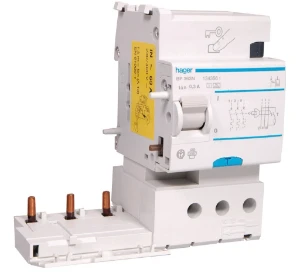

Residual current circuit breaker (RCCB) module
Manufacturer part number: BP363N
Serie:
Type: BP363N
EAN-code: 3250611463504
SKU Omnical: 2295107
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
425,00
per item
€
276,25
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
BP363N Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement 3-polig 63 A 300 mA klasse A, selectief
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
230 - 400
Nominal current
(A)
63
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
300
Delay adjustable
No
Number of poles
3
Leakage current type
Other
Frequency
50 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Connectable conductor cross section solid-core
(mm²)
1 - 25
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Anti-nuisance tripping version
Yes
Degree of protection (IP)
IP20
Ambient temperature during operating
(°C)
-5 - 40
Stock and logistics
Height
110 mm
Width
130 mm
Depth
75 mm
Packaging
box
Weight
0.29 kg
HS code
85363030
Country of Origin
FR
