Hager
BTH480E
Residual current circuit breaker (RCCB) module
Manufacturer part number: BTH480E
Serie:
Type: BTH480E
EAN-code: 3250611500087
SKU Omnical: 2295596
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
570,00
per item
€
370,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

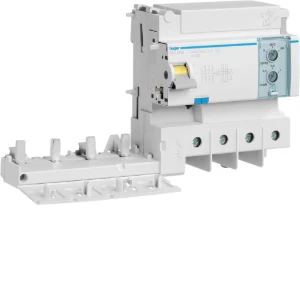

BTH480E Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement 4-polig 125 A instelbare mA high immunity
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
240 - 415
Nominal current
(A)
125
Rated fault current adjustable
Yes
Rated fault current
(A)
0.3 - 1
Max. delay time
(ms)
150
Delay adjustable
Yes
Number of poles
4
Leakage current type
Other
Surge current capacity
(kA)
3
Frequency
50 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Connectable conductor cross section solid-core
(mm²)
10 - 70
Connectable conductor cross section multi-wired
(mm²)
10 - 50
Anti-nuisance tripping version
Yes
With interlocking device
Yes
Degree of protection (IP)
IP20
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 60
Stock and logistics
Height
89 mm
Width
237 mm
Depth
142 mm
Packaging
box
Weight
0.903 kg
HS code
85363030
Country of Origin
FR
