Hager
CDA225G
Residual current circuit breaker (RCCB)
Manufacturer part number: CDA225G
Serie:
Type: CDA225G
EAN-code: 3250611610649
SKU Omnical: 2295598
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
198,00
per item
€
128,70
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

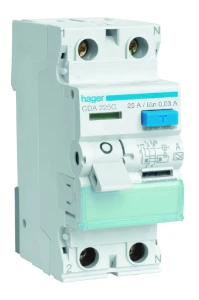

CDA225G Hager Residual current circuit breaker (RCCB)
Hager Residual current circuit breaker (RCCB) Aardlekschakelaar 2-polig 25 A 30 mA klasse A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
2
Rated fault current
(A)
0.03
Rated current
(A)
25
Leakage current type
A
Selective protection
No
Rated voltage
(V)
230
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
(kA)
6
Surge current capacity
(kA)
0.25
Frequency
50 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Construction size (according to DIN 43880)
1
Width in number of modular spacings
2
Built-in depth
(mm)
70
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
No
Ambient temperature during operating
(°C)
-25 - 40
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
80 mm
Width
96 mm
Depth
40 mm
Packaging
box
Weight
0.2 kg
HS code
85363030
Country of Origin
FR
