Hager
CFA680G
Residual current circuit breaker (RCCB)
Manufacturer part number: CFA680G
Serie:
Type:
EAN-code: 3250611623083
SKU Omnical: 4128034
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
€
441,00
per item
€
286,65
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

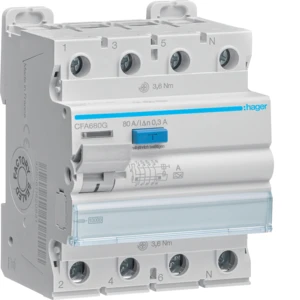

CFA680G Hager Residual current circuit breaker (RCCB)
Hager Residual current circuit breaker (RCCB) Aardlekschakelaar 4-polig 80 A 300 mA klasse A
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated fault current
(A)
0.3
Rated current
(A)
80
Leakage current type
A
Selective protection
No
Rated voltage
(V)
400
Mounting method
DIN rail
Short-circuit breaking capacity (Icw)
(kA)
10
Surge current capacity
(kA)
3
Frequency
50/60 Hz
Additional equipment possible
Yes
Degree of protection (IP)
IP20
Width in number of modular spacings
4
Built-in depth
(mm)
70
Short-time delayed tripping
No
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
With interlocking device
Yes
Ambient temperature during operating
(°C)
-25 - 70
Pollution degree
2
Connectable conductor cross section multi-wired
(mm²)
1 - 35
Connectable conductor cross section solid-core
(mm²)
1 - 50
Voltage type
AC
Explosion-proof
No
Stock and logistics
Height
100 mm
Width
80 mm
Depth
75 mm
Packaging
box
Weight
395 g
HS code
85363030
