Hager
EE860

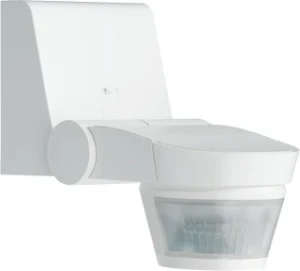

Movement sensor / presence detector complete
Manufacturer part number: EE860
Serie:
Type: EE860
EAN-code: 3250612258604
SKU Omnical: 1159733
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZOO
€
174,90
per item
€
133,62
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
EE860 Hager Movement sensor / presence detector complete
Hager Movement sensor / presence detector complete Bewegingsmelder Comfort PIR 220°, wit
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Width
(mm)
91
Creep-under protection
No
Networkable
Yes
Optimum mounting height
(m)
4
Staircase monitoring
No
Bridging switch
No
Max. transmission range sideways
(m)
10
Max. transmission range frontally
(m)
16
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9010
Degree of protection (IP)
IP55
Voltage type
AC
Min. switch-on time
(s)
5
Max. duty cycle
(min)
30
Detection angle horizontal
(°)
220 - 220
Response value luminosity
(lx)
5 - 1000
Max. switching power
(W)
2300
Max. starting current
(A)
16
Substation input
Yes
Frequency
(Hz)
50 - 60
Height
(mm)
139
Depth
(mm)
153
Sensor type
Passive infrared
With DALI interface
No
With remote control
Yes
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Suitable for C-load
Yes
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
220
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Connection type
Other
Anti-bacterial treatment
No
Impact strength
IK03
Min. starting current
(A)
0
Diameter
(mm)
0
Built-in width
(mm)
0
Built-in depth
(mm)
0
Built-in length
(mm)
0
Built-in diameter
(mm)
0
Min. depth of built-in installation box
(mm)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Max. switching power LED
(W)
400
Stock and logistics
Height
99 mm
Width
125 mm
Depth
147 mm
Packaging
box
Weight
0.42 kg
HS code
94054031
Country of Origin
CN
