Hager
EED518
Movement sensor / presence detector complete
Manufacturer part number: EED518
Serie:
Type:
EAN-code: 3250612256211
SKU Omnical: 4272298
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZOO
$
611.41
per item
$
467.11
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

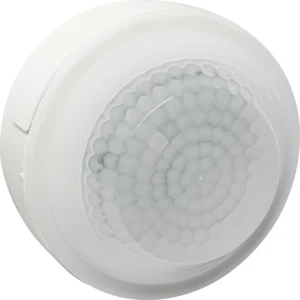

EED518 Hager Movement sensor / presence detector complete
Hager Movement sensor / presence detector complete Bewegingsmelder Highbay DALI2 360°, opbouw, detectie 22x11 m
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Movement sensor
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
Yes
Optimum mounting height
(m)
8
Staircase monitoring
No
Max. transmission range sideways
(m)
11
Max. transmission range frontally
(m)
7
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Mounting method
Surface mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Degree of protection (IP)
IP41
Voltage type
AC
Min. switch-on time
(s)
2
Max. duty cycle
(min)
60
Response value luminosity
(lx)
5 - 2000
Max. switching power
(W)
0
Temperature
(°C)
-5 - 45
Substation input
Yes
Frequency
(Hz)
50 - 60
Height
(mm)
62
Depth
(mm)
0
Sensor type
Passive infrared
With DALI interface
Yes
With remote control
Yes
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
No
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
360
Connection type
Push-in clamp
Impact strength
IK04
Min. starting current
(A)
0
Diameter
(mm)
105
Built-in depth
(mm)
0
Built-in diameter
(mm)
0
Min. depth of built-in installation box
(mm)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Max. switching power LED
(W)
0
Stock and logistics
Height
90 mm
Width
125 mm
Depth
150 mm
Packaging
box
Weight
265 g
HS code
85365080
