Hager
EER501
Movement sensor / presence detector complete
Manufacturer part number: EER501
Serie:
Type:
EAN-code: 3250612256228
SKU Omnical: 4272299
Stock: 0.
Estimated lead time: 6 days *
PreOrder
ZOO
€
163,00
per item
€
124,53
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

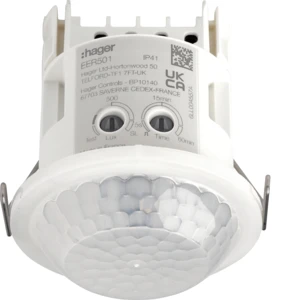

EER501 Hager Movement sensor / presence detector complete
Hager Movement sensor / presence detector complete Bewegings-/aanwezigheidsmelder 360°, inbouw, maakcntc, detectie Ø 10 m
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Presence detector
Constant light control
No
HVAC-control
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Networkable
Yes
Optimum mounting height
(m)
2.5
Staircase monitoring
No
Bridging switch
No
Max. transmission range sideways
(m)
5
Max. transmission range frontally
(m)
2.5
Suitable for wireless transmission
No
Remote operation
Yes
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
With signal unit
No
Teach-function for response value luminosity
Yes
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9010
Degree of protection (IP)
IP41
Voltage type
AC
Min. switch-on time
(s)
2
Max. duty cycle
(min)
60
Detection angle horizontal
(°)
360 - 360
Response value luminosity
(lx)
5 - 2000
Max. switching power
(W)
0
Temperature
(°C)
-5 - 45
Substation input
Yes
Frequency
(Hz)
50 - 50
Height
(mm)
86
Depth
(mm)
71
Sensor type
Passive infrared
With DALI interface
No
With remote control
Yes
Switch-off delay
(s)
0
Switching-on delay
(s)
0
Pivoting range sensor, horizontal
(°)
0 - 0
Pivoting range sensor, vertical
(°)
0 - 0
Suitable for C-load
No
Number of switching zones
1
Forced switch on
No
Scan angle
(°)
360
Suitable for ceiling mounting
No
Connection type
Push-in clamp
Anti-bacterial treatment
No
Impact strength
IK04
Min. starting current
(A)
0
Diameter
(mm)
62
Built-in width
(mm)
0
Built-in depth
(mm)
73
Built-in length
(mm)
0
Built-in diameter
(mm)
50
Min. depth of built-in installation box
(mm)
0
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Max. switching power LED
(W)
400
Stock and logistics
Height
65 mm
Width
80 mm
Depth
95 mm
Packaging
box
Weight
115 g
HS code
85365080
