Hager
G4703

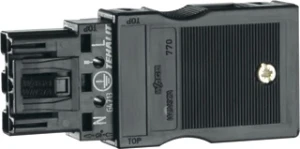

Plug-in connector for plug-in building installation
Manufacturer part number: G4703
Serie: Tehalit
Type: Ecoline
EAN-code: 4012740849562
SKU Omnical: 1038124
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
6,15
per item
€
4,18
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
G4703 Hager Plug-in connector for plug-in building installation
Hager Plug-in connector for plug-in building installation Ingangsconnector 3-polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
25
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Spring clamp connection
Width
(mm)
34.6
Model
Bus
Number of connections per pole
3
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
Black
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Fire load
(kWh)
0.117
Contact material
Other
Surface treatment contacts
Untreated
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
4
Length
(mm)
76
Height
(mm)
15
Cable diameter
(mm)
11.5 - 11.5
Connection cross section (fine-strand)
(mm²)
0.5 - 4
Connection cross section (solid-core)
(mm²)
0.5 - 4
Locking mechanism
None
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Stock and logistics
Height
55 mm
Width
200 mm
Depth
185 mm
Packaging
box
Weight
0.551 kg
HS code
85369010
Country of Origin
DE
