Hager
G4713
Plug-in connector for plug-in building installation
Manufacturer part number: G4713
Serie: Tehalit
Type: Ecoline
EAN-code: 4012740849586
SKU Omnical: 1038126
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
5,90
per item
€
4,01
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

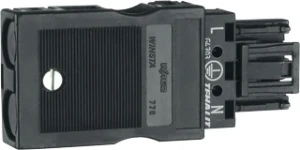

G4713 Hager Plug-in connector for plug-in building installation
Hager Plug-in connector for plug-in building installation Uitgangsconnector 3-polig
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated voltage
(V)
250
Rated current
(A)
25
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Spring clamp connection
Width
(mm)
34.6
Model
Plug
Number of connections per pole
3
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
Black
With strain relief
Yes
Material housing
Polyamide (PA)
Halogen free
Yes
Fire load
(kWh)
0.127
Contact material
Other
Surface treatment contacts
Untreated
Pollution degree
3
Continuity resistor
(mOhm)
1
Rated surge voltage
(kV)
4
Length
(mm)
76
Height
(mm)
15
Cable diameter
(mm)
11.5 - 11.5
Connection cross section (fine-strand)
(mm²)
0.5 - 4
Connection cross section (solid-core)
(mm²)
0.5 - 4
Locking mechanism
Integrated in plug-in connector
Max. continuous temperature resistance contact part
(°C)
85
Max. continuous temperature resistance strain relief
(°C)
105
Stock and logistics
Height
55 mm
Width
185 mm
Depth
220 mm
Packaging
box
Weight
0.581 kg
HS code
85366990
Country of Origin
DE
