Hager
HBT160F
Residual current circuit breaker (RCCB) module
Manufacturer part number: HBT160F
Serie: h3+
Type:
EAN-code: 3250613150839
SKU Omnical: 4128068
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZFJ
€
1.025,00
per item
€
915,32
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

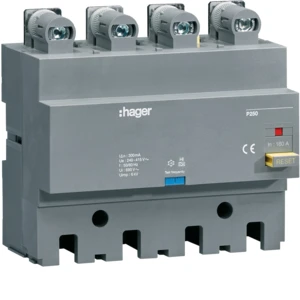

HBT160F Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement P250 4P 160 A Idn 300 mA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
220 - 415
Nominal current
(A)
160
Rated fault current adjustable
No
Rated fault current
(A)
0.3 - 0.3
Max. delay time
(ms)
0
Delay adjustable
No
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50/60 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Connectable conductor cross section solid-core
(mm²)
35 - 185
Connectable conductor cross section multi-wired
(mm²)
35 - 150
Anti-nuisance tripping version
Yes
With interlocking device
Yes
Degree of protection (IP)
IP40
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 70
Stock and logistics
Height
120 mm
Width
155 mm
Depth
190 mm
Packaging
box
Weight
1372 g
HS code
85363090
