Hager
HBW400H
Residual current circuit breaker (RCCB) module
Manufacturer part number: HBW400H
Serie: h3+
Type:
EAN-code: 3250613150945
SKU Omnical: 4128072
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZFJ
$
2,365.17
per item
$
2,112.10
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

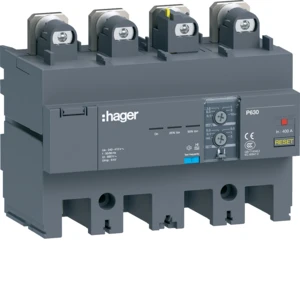

HBW400H Hager Residual current circuit breaker (RCCB) module
Hager Residual current circuit breaker (RCCB) module Aardlekelement P630 4P 400 A Idn 100 mA tot 10 A instelbaar
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage
(V)
220 - 415
Nominal current
(A)
400
Rated fault current adjustable
Yes
Rated fault current
(A)
0.1 - 10
Max. delay time
(ms)
3000
Delay adjustable
Yes
Number of poles
4
Leakage current type
A
Surge current capacity
(kA)
3
Frequency
50/60 Hz
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Anti-nuisance tripping version
Yes
With interlocking device
Yes
Degree of protection (IP)
IP40
Pollution degree
3
Ambient temperature during operating
(°C)
-25 - 70
Stock and logistics
Height
145 mm
Width
200 mm
Depth
200 mm
Packaging
box
Weight
3284 g
HS code
85363090
