Hager
HCS161AC
Switch disconnector
Manufacturer part number: HCS161AC
Serie: h3+
Type:
EAN-code: 3250613176907
SKU Omnical: 4128085
Stock: 0.
Estimated lead time: 12 days *
PreOrder
ZFJ
$
469.86
per item
$
419.58
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

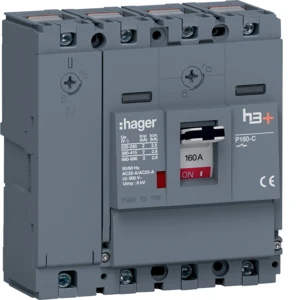

HCS161AC Hager Switch disconnector
Hager Switch disconnector Vermogensschakelaar h3+, P160 4P 160 A, kooiklemmen
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
160
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
Yes
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
690
Rated operation power at AC-23, 400 V
(kW)
163
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
Yes
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Toggle
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP40
Version as reversing switch
No
Rated operating voltage
(V)
220 - 690
Rated permanent current at AC-21, 400 V
(A)
160
Rated short-time withstand current lcw
(kA)
2
Colour control element
Grey
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
160
Degree of protection (NEMA)
Other
Stock and logistics
Height
122 mm
Width
141 mm
Depth
158 mm
Packaging
box
Weight
1640 g
HS code
85362090
