Hager
HIC416A
Switch disconnector
Manufacturer part number: HIC416A
Serie:
Type: HIC416A
EAN-code: 3250613191269
SKU Omnical: 2298035
Stock: 0.
Estimated lead time: 33 days *
PreOrder
H03
€
4.875,00
per item
€
3.724,50
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

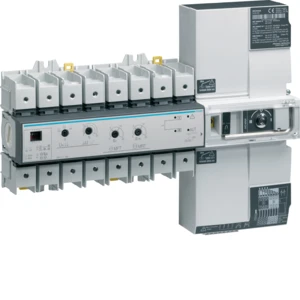

HIC416A Hager Switch disconnector
Hager Switch disconnector Omschakelaar motorbediend 4-polig 160 A modulair HIC
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
160
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
415
Rated operation power at AC-23, 400 V
(kW)
56
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
Yes
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
40
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Other
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Version as reversing switch
Yes
Rated operating voltage
(V)
380 - 415
Rated permanent current at AC-21, 400 V
(A)
160
Rated short-time withstand current lcw
(kA)
7
Switching power at 400 V
(kW)
105
Colour control element
Other
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
125
Degree of protection (NEMA)
Other
Stock and logistics
Height
122 mm
Width
316 mm
Depth
401 mm
Packaging
box
Weight
4.285 kg
HS code
85365080
Country of Origin
TN
