Hager
HIM408
Switch disconnector
Manufacturer part number: HIM408
Serie:
Type: HIM408
EAN-code: 3250613140571
SKU Omnical: 1185984
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
444,00
per item
€
339,22
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

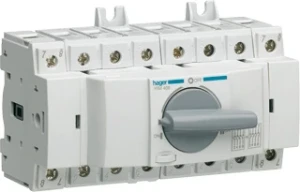

HIM408 Hager Switch disconnector
Hager Switch disconnector Omschakelaar 4-polig 80 A modulair M2
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
4
Rated permanent current Iu
(A)
80
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
No
Device construction
Built-in device fixed built-in technique
Max. rated operation voltage Ue AC
(V)
415
Rated operation power at AC-23, 400 V
(kW)
36
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Conditioned rated short-circuit current Iq
(kA)
50
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Version as reversing switch
Yes
Rated operating voltage
(V)
380 - 415
Rated permanent current at AC-21, 400 V
(A)
80
Rated operation power at AC-3, 400 V
(kW)
80
Rated short-time withstand current lcw
(kA)
1.5
Switching power at 400 V
(kW)
52
Colour control element
Grey
Number of switches
1
Rated permanent current at AC-23, 400 V
(A)
80
Degree of protection (NEMA)
Other
Stock and logistics
Height
89 mm
Width
115 mm
Depth
164 mm
Packaging
box
Weight
0.847 kg
HS code
85365080
Country of Origin
CN
