Hager
KDE04057011
Device installation insert for underfloor-installation
Manufacturer part number: KDE04057011
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002247211
SKU Omnical: 2298251
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
78,20
per item
€
53,10
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

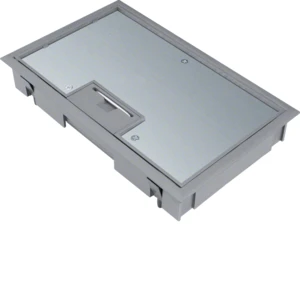

KDE04057011 Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Scharnierdeksel E04 147x247mm grijs voor 5mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
No
Suitable for double floor built-in
No
Number of device cups
2
Material
Polyamide (PA)
With opening carpeting
Yes
Depth of flooring recess
(mm)
5
Protective frame carpeting
Yes
Min. built-in depth
(mm)
51
Colour
Grey
RAL-number
7011
Length external dimension
(mm)
161
Width outside dimension
(mm)
261
Length built-in dimension
(mm)
147
Width built-in dimension
(mm)
247
Cover model
Rectangular
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
4
Number of inlets
1
With cable outlet in cover
Yes
Material housing
Plastic
Material cover
Plastic
Surface protection cover
Galvanized
Surface treatment cover
Other
Cover load
(kN)
1.5
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Height
350 mm
Width
390 mm
Depth
570 mm
Packaging
box
Weight
17.28 kg
HS code
39269097
Country of Origin
GR
