Hager
KDQ08129005

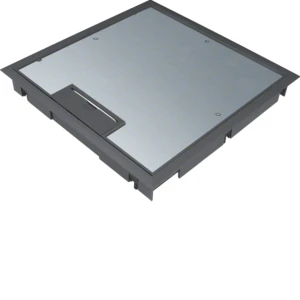

Device installation insert for underfloor-installation
Manufacturer part number: KDQ08129005
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002247280
SKU Omnical: 2298269
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
196,00
per item
€
133,08
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
KDQ08129005 Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Scharnierdeksel Q08 294x294mm zwart voor 12mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
No
Suitable for double floor built-in
No
Number of device cups
4
Material
Polyamide (PA)
With opening carpeting
Yes
Depth of flooring recess
(mm)
12
Protective frame carpeting
Yes
Min. built-in depth
(mm)
60
Colour
Black
RAL-number
9005
Length external dimension
(mm)
314
Width outside dimension
(mm)
314
Length built-in dimension
(mm)
294
Width built-in dimension
(mm)
294
Cover model
Other
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
8
Number of inlets
1
With cable outlet in cover
Yes
Material housing
Plastic
Material cover
Plastic
Surface protection cover
Galvanized
Surface treatment cover
Other
Cover load
(kN)
1.5
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Height
255 mm
Width
390 mm
Depth
575 mm
Packaging
box
Weight
12.401 kg
HS code
39269097
Country of Origin
GR
