Hager
MHN516
Miniature circuit breaker (MCB)
Manufacturer part number: MHN516
Serie:
Type: MHN516
EAN-code: 3250614312038
SKU Omnical: 1044376
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H02
$
58.16
per item
$
37.80
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

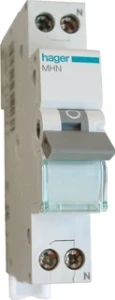

MHN516 Hager Miniature circuit breaker (MCB)
Hager Miniature circuit breaker (MCB) Installatieautomaat 1p+N 16 A B-karakteristiek 4,5 kA
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Rated current
(A)
16
Number of poles (total)
2
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
4.5
Rated voltage
(V)
240
Additional equipment possible
No
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
1
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Number of protected poles
1
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
Yes
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
4
Ambient temperature during operating
(°C)
-25 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 16
Connectable conductor cross section solid-core
(mm²)
1 - 25
Explosion-proof
No
Flush-mounted installation
Yes
Stock and logistics
Height
84 mm
Width
97 mm
Depth
288 mm
Packaging
box
Weight
1.248 kg
HS code
85363010
Country of Origin
FR
