Hager
NBN606
Miniature circuit breaker (MCB)
Manufacturer part number: NBN606
Serie:
Type: NBN606
EAN-code: 3250614614446
SKU Omnical: 2300295
Stock:
2 items.
Delivery time: 1-2 business days.
InStock
H02
€
160,00
per item
€
104,00
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

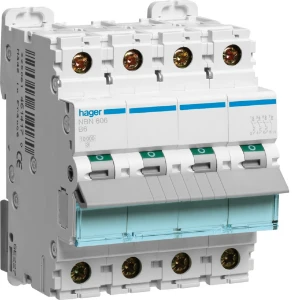

NBN606 Hager Miniature circuit breaker (MCB)
Hager Miniature circuit breaker (MCB) Installatieautomaat 3p+N 6 A B-karakteristiek 10 (15) kA
Datasheet
Rated current
(A)
6
Number of poles (total)
4
Concurrently switching neutral conductor
Yes
Release characteristic
B
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
(kA)
10
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
(kA)
10
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
(kA)
30
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
(kA)
15
Rated voltage
(V)
400
Additional equipment possible
Yes
Voltage type
AC
Current limiting class
3
Over voltage category
3
Pollution degree
2
Width in number of modular spacings
4
Built-in depth
(mm)
70
Degree of protection (IP)
IP20
Number of protected poles
3
Frequency
(Hz)
50 - 60
Suitable for flush-mounted installation
Yes
Rated insulation voltage Ui
(V)
500
Rated impulse withstand voltage Uimp
(kV)
6
Ambient temperature during operating
(°C)
-25 - 70
Connectable conductor cross section multi-wired
(mm²)
1 - 25
Connectable conductor cross section solid-core
(mm²)
1 - 35
Explosion-proof
No
Flush-mounted installation
Yes
Stock and logistics
Height
82 mm
Width
100 mm
Depth
231 mm
Packaging
box
Weight
1.376 kg
HS code
85362010
Country of Origin
FR
