Hager
SM101C
Multifunction measuring instrument
Manufacturer part number: SM101C
Serie:
Type: SM101C
EAN-code: 3250615631022
SKU Omnical: 2300952
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
530,00
per item
€
404,92
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

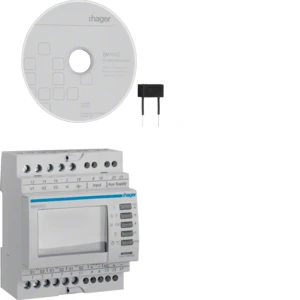

SM101C Hager Multifunction measuring instrument
Hager Multifunction measuring instrument Digitale multimeter, DIN-rail, Modbus + pulsuitgang
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Ampere meter
Yes
Blind power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Width
(mm)
73
Voltmeter
Yes
Effective power measurement device
Yes
Height
(mm)
67
Depth
(mm)
90
Accuracy class active energy according to IEC 62053-22
0.5s
Accuracy class reactive energy according to IEC 62053-23
Other
Number of voltage measurement inputs
4
Number of current measurement inputs
3
Voltage type of supply voltage
AC
Supply voltage AC 50 Hz
(V)
200 - 277
Supply voltage AC 60 Hz
(V)
200 - 277
Measuring range for frequency
(Hz)
45 - 65
Remote display
No
Number of analogue inputs
7
Number of analogue outputs
0
Number of digital inputs
1
Number of digital outputs
1
Ethernet-connections
0
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for OPC UA PubSub
No
Supporting protocol for PROFIBUS
No
Supporting protocol for MODBUS
Yes
Supporting protocol for PROFINET IO
No
Supporting protocol for other bus systems
No
With audit logging (audit log)
No
With logging of security events (security event log)
No
Web server with HTTPS transfer protocol
No
Degree of protection (IP), front side
IP20
Stock and logistics
Height
8.5 cm
Width
10 cm
Depth
10 cm
Packaging
box
Weight
0.27 kg
HS code
90303100
Country of Origin
FR
