Hager
SPB015N
Surge protection device for power supply systems
Manufacturer part number: SPB015N
Serie:
Type:
EAN-code: 3250615514868
SKU Omnical: 4128615
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
123,00
per item
€
93,97
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

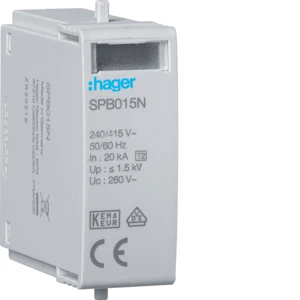

SPB015N Hager Surge protection device for power supply systems
Hager Surge protection device for power supply systems Steekelement T2 N-PE Uc 260 V Imax 40 kA Up 1,5 kV
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
240
Max. continuous voltage AC
(V)
275
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.35
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
1 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration other
No
Short-circuit breaking capacity (Isccr)
(kA)
25
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
52.4 mm
Width
17.5 mm
Depth
55.3 mm
Packaging
box
Weight
60 g
HS code
85363030
