Hager
SPB215
Surge protection device for power supply systems
Manufacturer part number: SPB215
Serie:
Type:
EAN-code: 3250615514882
SKU Omnical: 4128617
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
$
307.05
per item
$
234.58
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

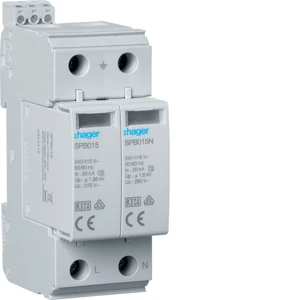

SPB215 Hager Surge protection device for power supply systems
Hager Surge protection device for power supply systems Overspanningsbeveiliging T2 2P 40kA TT/TNS met indicator + sign.contct
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
240
Max. continuous voltage AC
(V)
275
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.35
Voltage protection level L-N
(kV)
1.35
Voltage protection level N-PE
(kV)
1.6
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
2 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration TN
Yes
System configuration TN-C
No
System configuration TN-C-S
Yes
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
2
Short-circuit breaking capacity (Isccr)
(kA)
25
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, parallel connection (fuse)
(A)
125
Max. overcurrent protection device, series connection (fuse)
(A)
80
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
98.7 mm
Width
35.6 mm
Depth
65.7 mm
Packaging
box
Weight
260 g
HS code
85363030
