Hager
SPB315
Surge protection device for power supply systems
Manufacturer part number: SPB315
Serie:
Type:
EAN-code: 3250615514899
SKU Omnical: 4128618
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
296,00
per item
€
226,14
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

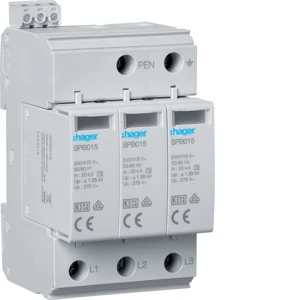

SPB315 Hager Surge protection device for power supply systems
Hager Surge protection device for power supply systems Overspanningsbeveiliging T2 3P 40 kA TNC met indicator + sign.contact
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
400
Max. continuous voltage AC
(V)
275
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.35
Voltage protection level L-N
(kV)
1.35
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
3 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
Yes
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration TN
Yes
System configuration TN-C
Yes
System configuration TN-C-S
No
System configuration TN-S
No
System configuration TT
No
System configuration other
No
Number of conductors (without earthing)
3
Short-circuit breaking capacity (Isccr)
(kA)
25
Max. discharge surge current (8/20)
(kA)
40
Max. overcurrent protection device, parallel connection (fuse)
(A)
125
Max. overcurrent protection device, series connection (fuse)
(A)
80
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
98.7 mm
Width
53 mm
Depth
65.7 mm
Packaging
box
Weight
349 g
HS code
85363030
