Hager
SPB420
Surge protection device for power supply systems
Manufacturer part number: SPB420
Serie:
Type:
EAN-code: 3250615515292
SKU Omnical: 4407888
Stock: 0.
Estimated lead time: 9 days *
PreOrder
H03
€
389,00
per item
€
297,20
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

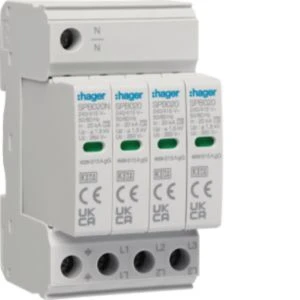

SPB420 Hager Surge protection device for power supply systems
Hager Surge protection device for power supply systems
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
20
Nominal voltage AC
(V)
415
Max. continuous voltage AC
(V)
275
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.5
Voltage protection level L-N
(kV)
1.5
Voltage protection level N-PE
(kV)
1.5
Mounting method
DIN rail (top hat rail) 35 mm
Construction size
4 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
No
System configuration IT
No
System configuration TN
No
System configuration TN-C
No
System configuration TN-C-S
No
System configuration TN-S
Yes
System configuration TT
Yes
System configuration other
No
Number of conductors (without earthing)
4
Short-circuit breaking capacity (Isccr)
(kA)
25
Max. discharge surge current (8/20)
(kA)
40
Stock and logistics
Height
65 mm
Width
85 mm
Depth
110 mm
Packaging
box
Weight
405 g
HS code
85354000
