Hager
SPC203N
Surge protection device for terminal equipment
Manufacturer part number: SPC203N
Serie:
Type:
EAN-code: 3250615514936
SKU Omnical: 4128622
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
145,00
per item
€
110,78
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

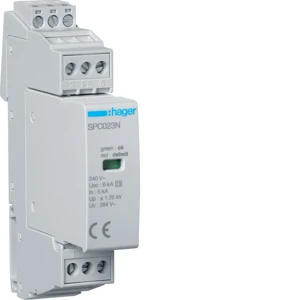

SPC203N Hager Surge protection device for terminal equipment
Hager Surge protection device for terminal equipment Overspanningsbeveiliging T3 1P+N Uc 264 V In 5 kA Up 1,25 kV +sign.cnt
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
240
Nominal voltage DC
(V)
240
Max. continuous voltage AC
(V)
264
Max. continuous voltage DC
(V)
240
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
10
Total discharge current (8/20) (L+N-PE)
(kA)
10
Voltage protection level
(kV)
1.25
Voltage protection level L-N
(kV)
1.25
Voltage protection level L-PE/N-PE
(kV)
1.4
Number of poles
2
With remote signalling contact
Yes
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
Yes
Degree of protection (IP)
IP20
Total discharge current (8/20) (L1+L2+L3+N-PE)
(kA)
10
Max. overcurrent protection device, parallel connection (fuse)
(A)
32
Max. overcurrent protection device, series connection (fuse)
(A)
25
Stock and logistics
Height
93.4 mm
Width
17.7 mm
Depth
74.5 mm
Packaging
box
Weight
114 g
HS code
85363030
