Hager
SPC403N
Surge protection device for terminal equipment
Manufacturer part number: SPC403N
Serie:
Type:
EAN-code: 3250615514943
SKU Omnical: 4128623
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
$
238.26
per item
$
182.03
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

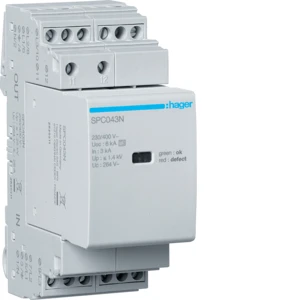

SPC403N Hager Surge protection device for terminal equipment
Hager Surge protection device for terminal equipment Overspanningsbeveiliging T3 3P+N Uc 264 V In 3 kA Up 1,4 kV + sign.cnt
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Mounting method
DIN rail (top hat rail) 35 mm
Nominal voltage AC
(V)
230
Nominal voltage DC
(V)
230
Max. continuous voltage AC
(V)
264
Nominal load current
(A)
26
Nominal discharge surge current (8/20) (L-N)
(kA)
9
Total discharge current (8/20) (L+N-PE)
(kA)
9
Voltage protection level
(kV)
1.4
Voltage protection level L-N
(kV)
1.25
Voltage protection level L-PE/N-PE
(kV)
1.4
Number of poles
4
With remote signalling contact
No
Signalling at the device
Optic
Max. conductor cross section solid (solid, stranded)
(mm²)
4
Max. conductor cross section flexible (fine-strand)
(mm²)
2.5
Category type 3
Yes
Degree of protection (IP)
IP20
Total discharge current (8/20) (L1+L2+L3+N-PE)
(kA)
9
Max. overcurrent protection device, parallel connection (fuse)
(A)
16
Max. overcurrent protection device, series connection (fuse)
(A)
25
Stock and logistics
Height
90 mm
Width
35.4 mm
Depth
74.5 mm
Packaging
box
Weight
155 g
HS code
85363030
