Hager
SPK602
Surge protection device for data networks/MCR-technology
Manufacturer part number: SPK602
Serie:
Type:
EAN-code: 3250615515070
SKU Omnical: 4128624
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
204,00
per item
€
155,86
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

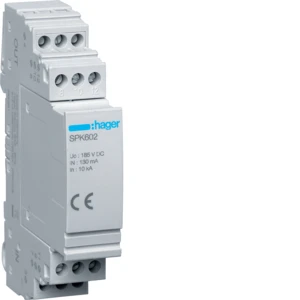

SPK602 Hager Surge protection device for data networks/MCR-technology
Hager Surge protection device for data networks/MCR-technology Overspanningsbeveiliging 2P voor ADSL
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal voltage AC
(V)
130 - 130
Nominal voltage DC
(V)
185 - 185
Max. continuous voltage AC
(V)
130
Max. continuous voltage DC
(V)
185
Nominal discharge surge current (8/20)
(kA)
10
Voltage protection level core/earth
(V)
300
Frequency
(MHz)
0 - 0
Limiting frequency
(MHz)
20
Mounting method
DIN rail (top hat rail) 35 mm
Connection 1
Clamp
Pro-active thermo-control
No
With remote signalling contact
Yes
Signalling at the device
None
Explosion-tested version
No
Number of conductors (without earthing)
3
Earthing via
Separate conductor
Assembly width
(mm)
17.7
Degree of protection (IP)
IP20
Stock and logistics
Height
90 mm
Width
17.7 mm
Depth
65.5 mm
Packaging
box
Weight
74 g
HS code
85363030
