Hager
SPV040
Surge protection device for power supply systems
Manufacturer part number: SPV040
Serie:
Type:
EAN-code: 3250615514950
SKU Omnical: 4128629
Stock: 0.
Estimated lead time: 6 days *
PreOrder
H03
€
103,00
per item
€
78,69
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

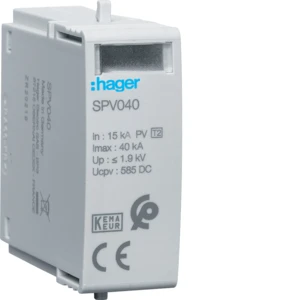

SPV040 Hager Surge protection device for power supply systems
Hager Surge protection device for power supply systems Steekelement T2 1P PV +/ - voor SPV340
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal discharge surge current (8/20)
(kA)
15
Nominal voltage AC
(V)
1000
Nominal voltage DC
(V)
1000
Max. continuous voltage AC
(V)
585
Max. continuous voltage DC
(V)
585
Max. PV-voltage
(V)
0
Voltage protection level
(kV)
1.9
Voltage protection level L-N
(kV)
1.9
Voltage protection level N-PE
(kV)
1.9
Mounting method
On basic element
Construction size
1 modular spacing
Max. conductor cross section solid (solid, stranded)
(mm²)
35
Max. conductor cross section flexible (fine-strand)
(mm²)
25
With remote signalling contact
No
Integrated backup fuse
No
Signalling at the device
Optic
Category type 2
Yes
Degree of protection (IP)
IP20
System configuration DC
Yes
System configuration other
Yes
Short-circuit breaking capacity (Isccr)
(kA)
2
Max. discharge surge current (8/20)
(kA)
40
Integrated short-circuit protection
No
Leakage-current free
No
Stock and logistics
Height
52.4 mm
Width
17.5 mm
Depth
55.3 mm
Packaging
box
Weight
75 g
HS code
85363030
