Hager
UDB3120170
Junction box for underfloor installation
Manufacturer part number: UDB3120170
Serie: Electraplan
Type: UK
EAN-code: 4012002238059
SKU Omnical: 2301635
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
329,00
per item
€
223,39
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

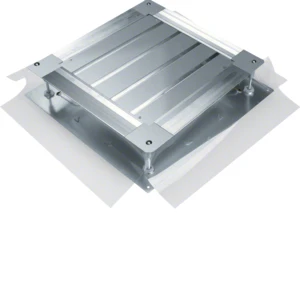

UDB3120170 Hager Junction box for underfloor installation
Hager Junction box for underfloor installation Universele vloerdoos met bodemplaat grootte 3 498x498x(120-170)mm
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Nominal dimension
(mm)
340
Suitable for floor duct countersunk (closed)
Yes
Suitable for sub-floor duct overhead closed
No
Duct height
(mm)
28 - 48
Duct width
(mm)
190 - 340
Min. height finishing layer
(mm)
120
Levelling range
(mm)
120 - 170
Material side wall
Plastic
Mounting cover insertion
Yes
Suitable for placing of sealing
No
Decoupling possibility cover from base unit
Yes
Bottom plate
Yes
Cover model
Universal
Stock and logistics
Height
570 mm
Width
780 mm
Depth
820 mm
Packaging
box
Weight
38.991 kg
HS code
73269098
Country of Origin
DE
