Hager
VDQ12057011

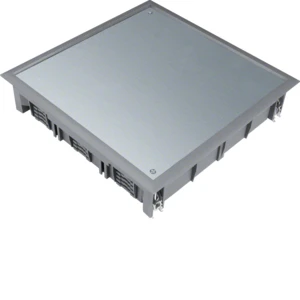

Device installation insert for underfloor-installation
Manufacturer part number: VDQ12057011
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002244241
SKU Omnical: 2302251
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
88,20
per item
€
59,89
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VDQ12057011 Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Deksel Q12 244x244mm grijs voor 5mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
0
Material
Polyamide (PA)
With opening carpeting
Yes
Depth of flooring recess
(mm)
5
Protective frame carpeting
Yes
Min. built-in depth
(mm)
60
Colour
Grey
RAL-number
7011
Length external dimension
(mm)
263
Width outside dimension
(mm)
263
Length built-in dimension
(mm)
244
Width built-in dimension
(mm)
244
Cover model
Other
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
0
Number of inlets
0
With cable outlet in cover
No
Material housing
Plastic
Surface protection housing
Other
Material cover
Plastic
Surface protection cover
Galvanized
Surface treatment cover
Other
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Height
280 mm
Width
315 mm
Depth
330 mm
Packaging
box
Weight
10.449 kg
HS code
39269097
Country of Origin
GR
