Hager
VE09127011

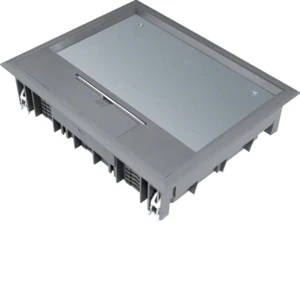

Device installation insert for underfloor-installation
Manufacturer part number: VE09127011
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002244425
SKU Omnical: 2302269
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
€
136,00
per item
€
92,34
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VE09127011 Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Installatiedoos E09 200x253mm grijs voor 12mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
3
Material
Polyamide (PA)
With opening carpeting
Yes
Depth of flooring recess
(mm)
12
Protective frame carpeting
Yes
Min. built-in depth
(mm)
84
Colour
Grey
RAL-number
7011
Length external dimension
(mm)
219
Width outside dimension
(mm)
272
Length built-in dimension
(mm)
200
Width built-in dimension
(mm)
253
Cover model
Rectangular
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
9
Number of inlets
1
With cable outlet in cover
Yes
Material housing
Plastic
Material cover
Plastic
Surface protection cover
Other
Surface treatment cover
Other
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Height
285 mm
Width
310 mm
Depth
330 mm
Packaging
box
Weight
9.89 kg
HS code
39269097
Country of Origin
GR
