Hager
VEE0912E

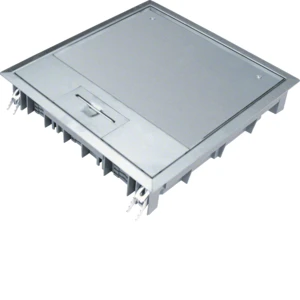

Device installation insert for underfloor-installation
Manufacturer part number: VEE0912E
Serie: Electraplan
Type: VE-EE
EAN-code: 4012002247600
SKU Omnical: 2302283
Stock: 0.
Estimated lead time: 6 days *
PreOrder
Q06
$
1,129.88
per item
$
767.19
per item
USD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
VEE0912E Hager Device installation insert for underfloor-installation
Hager Device installation insert for underfloor-installation Installatiedoos RVS E09 200x253mm voor 12mm vloerafdekking
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Suitable for wet cleaning
No
Suitable for sub-floor duct
Yes
Suitable for hollow floor
Yes
Suitable for double floor built-in
Yes
Number of device cups
3
Material
Stainless steel
With opening carpeting
Yes
Depth of flooring recess
(mm)
12
Protective frame carpeting
Yes
Min. built-in depth
(mm)
84
Colour
Other
Length external dimension
(mm)
224
Width outside dimension
(mm)
272
Length built-in dimension
(mm)
200
Width built-in dimension
(mm)
253
Cover model
Rectangular
Degree of protection (IP)
IP20
Number of socket outlets with protective contact (type F)
9
Number of inlets
1
With cable outlet in cover
Yes
Material housing
Stainless steel
Surface protection housing
Galvanized
Material cover
Plastic
Surface protection cover
Other
Surface treatment cover
Brushed
Cover load
(kN)
1.5
Suitable for indoor installation
Yes
Suitable for outdoor installation
No
Suitable for concrete installation
Yes
Suitable for floors in computer rooms
Yes
Stock and logistics
Height
88 mm
Width
315 mm
Depth
354 mm
Packaging
box
Weight
2.021 kg
HS code
73269098
Country of Origin
DE
