Harting
09100022701
Contact insert for rectangular connectors
Manufacturer part number: 09100022701
Serie:
Type: 9100022701
EAN-code: 5713140185692
SKU Omnical: 1507413
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XZX
€
11,70
per item
€
6,35
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09100022701 Harting Contact insert for rectangular connectors

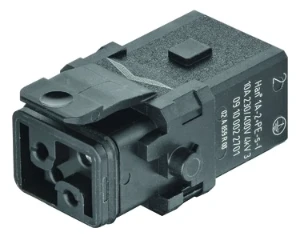

Harting Contact insert for rectangular connectors Han 1A-2+PE-s-f latch
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
2
Rated current In
(A)
10
Contact type
Bus
Width
(mm)
25.3
Contact insert without contacts
No
Material connector insert
Thermoplastic
Rated surge voltage
(kV)
4
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.75 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.75 - 1.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
2
Operating temperature
(°C)
-30 - 90
Min. number of insertion cycles
100
Height
(mm)
18.7
Depth
(mm)
37
Stock and logistics
Packaging
Package
Weight
13 G
HS code
85366990
Country of Origin
DE
