Harting
09120053001

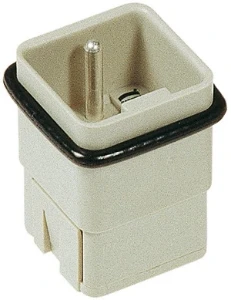

Contact insert for rectangular connectors
Manufacturer part number: 09120053001
Serie:
Type: Han Q 5/0-M-C
EAN-code: 5713140017252
SKU Omnical: 1003995
Stock:
215 items.
Delivery time: 1-2 business days.
InStock
XZX
€
10,95
per item
€
5,95
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09120053001 Harting Contact insert for rectangular connectors
Harting Contact insert for rectangular connectors Inserts, Crimp termination, Male, Polycarbonate (PC), RAL 7032
Datasheet
Contact insert without contacts
No
Contact type
Pin
Shape
Rectangular
With housing
No
Number of poles
5
Material connector insert
Thermoplastic
Rated current In
(A)
16
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
600
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 2.5
Material of contact surface
Other
Material of contact insert
Thermoplastic
Material contact
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
5
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Stock and logistics
Packaging
Package
Weight
0.013 kg
HS code
85366990
Country of Origin
RO
