Harting 09140082633
Harting

09140082633

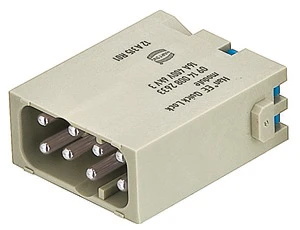

Contact insert for rectangular connectors
Manufacturer part number: 09140082633
Serie:
Type: Han EE Quick-Lock module, male

EAN-code: 5713140020580
SKU Omnical: 1124242

Stock: 9 items.

Delivery time: 1-2 business days.
InStock

XZX
26,34 per item
14,30 per item
EUR | Excluding VAT

Quantity
items
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
09140082633 Harting Contact insert for rectangular connectors
Harting Contact insert for rectangular connectors Han® EE module, Single module, Han-Quick Lock® termination, Male

Datasheet

Contact insert without contacts
No
Contact type
Pin
Shape
Rectangular
With housing
No
Number of poles
8
Diameter plug-in contact (mm)
2.5
Modular version
No
Material connector insert
Thermoplastic
Rated current In (A)
16
Ambient temperature (°C)
-40 - 125
Rated voltage (V)
400
Rated surge voltage (kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.5 - 2.5
Connectable conductor cross section multi-wired (mm²)
0.5 - 2.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Number of power contacts
8
Operating temperature (°C)
-40 - 125
Min. number of insertion cycles
500

Stock and logistics

Packaging
Package
Weight
0.021 kg
HS code
85389099
Country of Origin
RO
