Harting
09140122632
Contact insert for rectangular connectors
Manufacturer part number: 09140122632
Serie:
Type: Han DD Quick-Lock module, male
EAN-code: 5713140020900
SKU Omnical: 1141442
Stock:
21 items.
Delivery time: 1-2 business days.
InStock
XZX
€
30,18
per item
€
16,39
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09140122632 Harting Contact insert for rectangular connectors

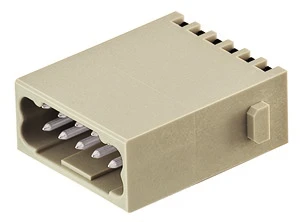

Harting Contact insert for rectangular connectors Han DD Quick-Lock module, male
Datasheet
Number of poles
12
Rated current In
(A)
10
Contact type
Pin
With housing
No
Contact insert without contacts
No
Shape
Rectangular
Diameter plug-in contact
(mm)
1.6
Modular version
No
Material connector insert
Thermoplastic
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
250
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Type of electric connection
Spring clamp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.25 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.25 - 1.5
Material of contact surface
Silver
Material of contact insert
Thermoplastic
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Number of power contacts
12
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Stock and logistics
Packaging
Package
Weight
0.02 kg
HS code
85389099
Country of Origin
RO
