Harting
09140123101
Contact insert for rectangular connectors
Manufacturer part number: 09140123101
Serie:
Type: Han DD module, crimp female
EAN-code: 5713140020986
SKU Omnical: 1004069
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XZX
€
5,07
per item
€
2,75
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

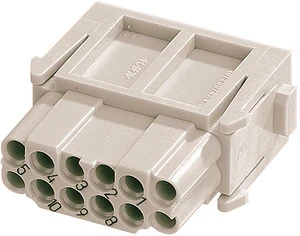

09140123101 Harting Contact insert for rectangular connectors
Harting Contact insert for rectangular connectors Han DD® module, Single module, Crimp termination, Female, Contacts:
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of poles
12
Rated current In
(A)
10
Contact type
Bus
With housing
No
Contact insert without contacts
Yes
Shape
Rectangular
Modular version
No
Material connector insert
Thermoplastic
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
250
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 2.5
Material of contact surface
Other
Material of contact insert
Thermoplastic
Material contact
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Number of power contacts
12
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Stock and logistics
Packaging
Package
Weight
0.01 kg
HS code
85389099
Country of Origin
DE
