Harting
09156083001

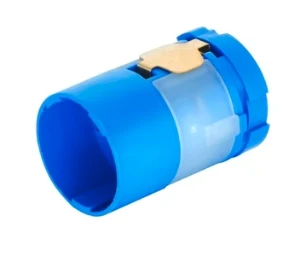

Contact insert for circular connectors
Manufacturer part number: 09156083001
Serie:
Type: M23 P 4+3+PE Male -C
EAN-code: 5713140187382
SKU Omnical: 3223281
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XZX
$
20.15
per item
$
10.94
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09156083001 Harting Contact insert for circular connectors
Harting Contact insert for circular connectors M23 P 4+3+PE Male -C
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Pin
Number of poles
8
Material connector insert
Thermoplastic
Rated current In
(A)
28
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
600
Rated surge voltage
(kV)
4
Type of electric connection
Crimp connection
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 4
Connectable conductor cross section multi-wired
(mm²)
0.14 - 4
Material of contact surface
Other
Material of contact insert
Plastic
Material contact
Other
Material insulation body
Polyamide (PA)
Inflammability class of insulation material according to with UL94
V0
With protective conductor
No
Min. number of insertion cycles
500
Stock and logistics
Packaging
Package
Weight
0.008 kg
HS code
85366990
Country of Origin
DE
