Harting
09160243101
Contact insert for rectangular connectors
Manufacturer part number: 09160243101
Serie:
Type: Han 24DD-F-C
EAN-code: 5713140023765
SKU Omnical: 1004127
Stock:
54 items.
Delivery time: 1-2 business days.
InStock
XZX
€
30,72
per item
€
16,68
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
09160243101 Harting Contact insert for rectangular connectors

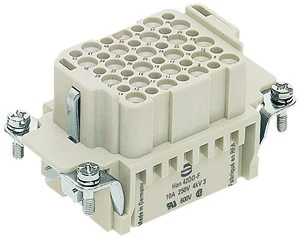

Harting Contact insert for rectangular connectors Han DD 24 POS. F CRIMP INSERT
Datasheet
Number of poles
24
Rated current In
(A)
10
Contact type
Bus
Width
(mm)
34
With housing
No
Contact insert without contacts
No
Shape
Rectangular
Diameter plug-in contact
(mm)
1.6
Modular version
Yes
Material connector insert
Other
Ambient temperature
(°C)
-40 - 125
Rated voltage
(V)
250
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Type of electric connection
Crimp connection
With wire protection
No
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.14 - 2.5
Connectable conductor cross section solid-core
(mm²)
0.14 - 2.5
Connectable conductor cross section multi-wired
(mm²)
0.14 - 2.5
Material of contact surface
Other
Material of contact insert
Other
Material contact
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Number of power contacts
24
Operating temperature
(°C)
-40 - 125
Min. number of insertion cycles
500
Height
(mm)
50.8
Depth
(mm)
36.1
Stock and logistics
Packaging
Package
Weight
0.043 kg
HS code
85366990
Country of Origin
RO
