Harting
09200030445
Rectangular connector, set (industrial connector)
Manufacturer part number: 09200030445
Serie:
Type: Han 3A mit Harax / Buchse
EAN-code: 5713140038592
SKU Omnical: 1129575
Stock: 0.
Estimated lead time: 6 days *
PreOrder
XZX
€
33,39
per item
€
18,13
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

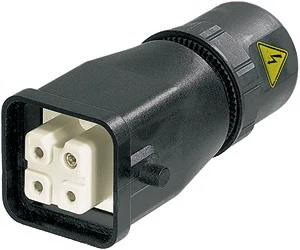

09200030445 Harting Rectangular connector, set (industrial connector)
Harting Rectangular connector, set (industrial connector) Han 3A with Harax / Female
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Contact type
Other
Length
(mm)
26.5
Height
(mm)
64
Number of plug-in contacts
3
Width
(mm)
26.5
Rated current In
(A)
10
Ambient temperature
(°C)
85 - 85
Rated voltage
(V)
600
Rated surge voltage
(kV)
4
Over voltage category
III
Pollution degree
3
Connectable conductor cross section fine-strand without cable end sleeve
(mm²)
0.75 - 1.5
Connectable conductor cross section fine-strand with cable end sleeve
(mm²)
0.75 - 1.5
Connectable conductor cross section solid-core
(mm²)
0.75 - 1.5
Connectable conductor cross section multi-wired
(mm²)
0.75 - 1.5
Type of electric connection
Insulation displacement connection
Material of contact surface
Silver
Material contact
Other copper alloys
Material insulation body
Polycarbonate (PC)
Material housing
Other
With interlocking device
No
Locking mechanism
Other
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes
Operating temperature
(°C)
-40 - 85
Degree of protection (IP), mounted
IP65
Number of poles
3
Coating housing
Other
EMC-version
No
With sealing
No
Position cable feed
Above
Stock and logistics
Packaging
Package
Weight
0.038 kg
HS code
85366990
Country of Origin
DE
