Harting 09330162601
Harting

09330162601

Contact insert for rectangular connectors
Manufacturer part number: 09330162601
Serie:

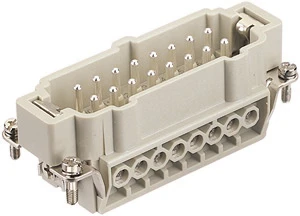

Type: Han E 16 Pos. M Insert Screw

EAN-code:
SKU Omnical: 1004406

Stock: 69 items.

Delivery time: 1-2 business days.
InStock

G51
€ 19,34 per item
9,94 per item
EUR | Excluding VAT

Quantity
pce
Add to cart
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
paypal
visa
mastercard
wire-transfer
09330162601 Harting Contact insert for rectangular connectors
Harting Contact insert for rectangular connectors

Datasheet

Contact insert without contacts
No
Contact type
Pin
Shape
Rectangular
With housing
No
Number of poles
16
Diameter plug-in contact (mm)
2.5
Modular version
No
Material connector insert
Thermoplastic
Rated current In (A)
16
Ambient temperature (°C)
125 - -40
Rated voltage (V)
600
Rated surge voltage (kV)
6
Over voltage category
III
Pollution degree
3
Type of electric connection
Screw connection
With wire protection
Yes
Connectable conductor cross section fine-strand without cable end sleeve (mm²)
0.75 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve (mm²)
0.75 - 2.5
Connectable conductor cross section solid-core (mm²)
0.75 - 2.5
Connectable conductor cross section multi-wired (mm²)
2.5 - 0.75
Material of contact surface
Silver
Material of contact insert
Other
Material contact
Other copper alloys
Inflammability class of insulation material according to with UL94
V0
With protective conductor
Yes

Stock and logistics

Packaging
Blister
Weight
0.086 kg
HS code
85366990
Country of Origin
DE
