Harting
19412240301

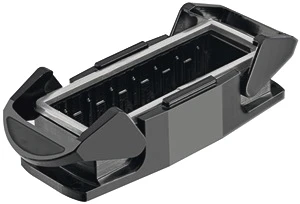

Housing for rectangular connectors
Manufacturer part number: 19412240301
Serie:
Type: Han-Eco Mod.24 Outd.-HBM
EAN-code: 5713140131729
SKU Omnical: 1231624
Stock: 0.
Estimated lead time: 9 days *
PreOrder
XZX
$
131.81
per item
$
71.57
per item
CAD | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
19412240301 Harting Housing for rectangular connectors
Harting Housing for rectangular connectors Han-Eco Mod.24 Outd.-HBM
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Shape
Rectangular
Length
(mm)
140
Height
(mm)
30.4
Width
(mm)
57
Type of housing
Housing extension
Position cable feed
Other
Position of the shackle
Base unit
With cable screw gland
No
With hinged lid
No
Material housing
Plastic
With interlocking device
Yes
Locking mechanism
Double locking levers
Inflammability class of insulation material according to with UL94
V0
Operating temperature
(°C)
-40 - 125
EMC-version
No
Corrosion resistant
No
UV resistant
Yes
Degree of protection (IP), mounted
IP65
Depth
(mm)
34.2
Coating housing
Other
Colour housing
Black
Mounting method of the cable gland
None
With distance piece
No
With sealing
Yes
Stock and logistics
Packaging
Package
Weight
0.131 kg
HS code
85389099
Country of Origin
DE
