Jung
AL3181-1AN
Movement sensor for bus system
Manufacturer part number: AL3181-1AN
Serie: LS range
Type: AL 3181-1 AN
EAN-code: 4011377155817
SKU Omnical: 3320133
Stock: 0.
Estimated lead time: 18 days *
PreOrder
J94
€
205,52
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

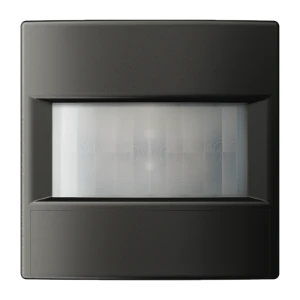

AL3181-1AN Jung Movement sensor for bus system
Jung Movement sensor for bus system KNX sensorafd. univ. 1,10M LS Alu
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Bus system KNX
Yes
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Width
(mm)
70
Bus system Powernet
No
Other bus systems
None
Model
Movement sensor
Mounting method
Flush mounted (plaster)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
Transparent
No
With bus connection
No
Substation input
Yes
Creep-under protection
No
Animal zone
Yes
Staircase monitoring
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Switch-off delay self-learning
Yes
Optimum mounting height
(m)
11
Max. transmission range sideways
(m)
5
Max. transmission range frontally
(m)
8
Diameter detection range on floor
(m)
10
Detection angle vertical
(°)
6 - 6
Detection angle horizontal
(°)
0 - 0
Number of channels
1
Min. switch-on time
(s)
10
Height
(mm)
70
Radio frequent bidirectional
No
Operation mode switch
Yes
DALI-2 certified
No
Built-in width
(mm)
70
Built-in depth
(mm)
0
Suitable for ceiling mounting
No
Suitable for wall mounting
Yes
Voltage supply over bus
Yes
No
No
With connection cable
No
Stock and logistics
Height
0.073 m
Width
0.085 m
Depth
0.085 m
Packaging
box
Weight
0.058 kg
HS code
90318080
