Klemko
156490

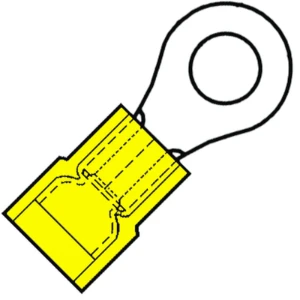

Solderless copper terminals for copper conductors
Manufacturer part number: 156490
Serie: Geïsoleerde kabelschoenen, Nylon
Type: SP 4685 R
EAN-code: 8716643005846
SKU Omnical: 1203305
Stock: 0.
Estimated lead time: 5 days *
PreOrder
K71
€
82,72
per 100 items
€
53,77
per 100 items
EUR | Excluding VAT
Quantity
x 100 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
156490 Klemko Solderless copper terminals for copper conductors
Klemko Solderless copper terminals for copper conductors Geïsol. ringkabelschoen M8, SuperPidg, 4,0-6,0 mm2, Nylon
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Bolt dimension (metric)
8
Flange shape
Ring shape
According to DIN
No
Nominal cross section
(mm²)
2.63 - 6.64
Material
Copper
Surface protection
Tinned
Insulation
Polyamide (PA)
Colour insulation
Yellow
Reel/roll packaging
No
Sleeve form
Short
AWG-range
10 - 14
Suitable for solid conductors
No
Suitable for stranded conductors
Yes
Suitable for fine strand conductors
Yes
Suitable for high temperatures (to 650 °C)
No
Suitable for insulated varnish
No
Suitable for round conductors
Yes
Suitable for flat conductors
No
For pull protected connections
Yes
Max. current (Imax)
(A)
50
Stud size (imperial)
Other
Halogen free
Yes
Total length
(mm)
34.9
Stock and logistics
Height
0.054 cm
Width
0.082 cm
Depth
0.082 cm
Packaging
box
Weight
0.331 kg
HS code
85389099
Country of Origin
NL
