Kraus & Naimer
70003472
Off-load switch
Manufacturer part number: 70003472
Serie: Besturingsschakelaar
Type: CA10
EAN-code: 9004257178988
SKU Omnical: 3323037
Stock: 0.
Estimated lead time: 9 days *
PreOrder
N15
€
49,39
per item
€
41,64
per item
EUR | Excluding VAT
Quantity
items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

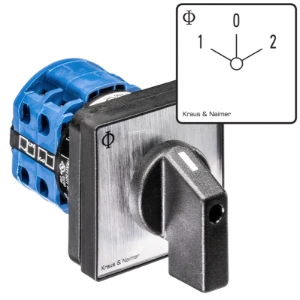

70003472 Kraus & Naimer Off-load switch
Kraus & Naimer Off-load switch Motoromkeerschak. 20A 3pol. 1-0-2 frontinb. 4 gats IP66.
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Model
Reversing switch
Number of poles
3
With zero (off) position
Yes
Rated permanent current Iu
(A)
20
Rated operation power at AC-3, 400 V
(kW)
5.5
Degree of protection (IP), front side
IP66
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Suitable for floor mounting
No
Suitable for front mounting
Yes
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Complete device in housing
No
Type of control element
Toggle
Type of electrical connection of main circuit
Screw connection
With retraction in 0-position
No
Rated operation current Ie at AC-3, 400 V
(A)
690
Degree of protection (NEMA), front side
Other
Material housing
Other
Stock and logistics
Height
105 mm
Width
55 mm
Depth
55 mm
Packaging
box
Weight
0.116 kg
HS code
85365080
