Lapp
0010111
Power cable < 1 kV, for moving application
Manufacturer part number: 0010111
Serie: ÖLFLEX CLASSIC 100
Type: ÖLFLEX CLASSIC 100 450/750 V
EAN-code: 4044773008692
SKU Omnical: 2555168
Stock: 0.
Estimated lead time: 9 days *
PreOrder
YKA
$
30,459.29
per 1,000 items
$
20,681.86
per 1,000 items
USD | Excluding VAT
Quantity
x 1,000 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping

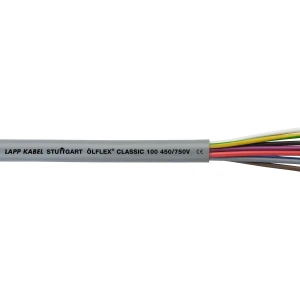

0010111 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application ÖLFLEX CLASSIC 100 450/750V 7G10 - 1000 MTR
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
7
Nominal cross section conductor
(mm²)
10
With protective conductor
Yes
Core identification
Colour
Colour outer sheath
Grey
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Cable geometry
Round
Eca
None
None
None
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
21.7
Min. permitted bending radius, moving application/free movement
(mm)
325.5
Min. permitted bending radius, stationary application/permanent installation
(mm)
86.8
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Nominal voltage U0
(V)
450
Nominal voltage U
(V)
750
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
Reel
Weight
1.191 kg
HS code
85444995
Country of Origin
DE
