Lapp
0012621

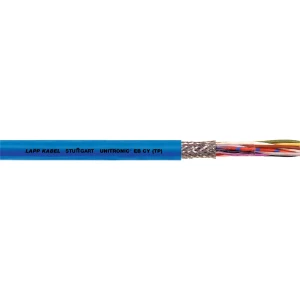

Power cable < 1 kV, for moving application
Manufacturer part number: 0012621
Serie: UNITRONIC EB CY (TP)
Type: UNITRONIC EB CY (TP)
EAN-code: 4044773002928
SKU Omnical: 2556049
Stock: 0.
Estimated lead time: 8 days *
PreOrder
YKO
€
273,59
per 50 items
€
185,77
per 50 items
EUR | Excluding VAT
Quantity
x 50 items
Contact us for a quote with volume pricing.
SSL Connection
WorldWide Shipping
0012621 Lapp Power cable < 1 kV, for moving application
Lapp Power cable < 1 kV, for moving application 0012621/50 UNITRONIC EB CY (TP) 3X2X0,75
* Lead time based on standard manufacturer lead time and historical data. Omnical confirms lead times upon ordering and upon request.
Datasheet
Number of cores
6
Nominal cross section conductor
(mm²)
0.75
Core identification
Colour
Colour outer sheath
Blue
Conductor material
Copper
Conductor surface
Bare
Conductor category
Class 5 = flexible
Stranding element
Pairs
Material core insulation
Polyvinyl chloride (PVC)
Specification core insulation
Other
Screen over stranding element
None
Screen over stranding
Braiding
Material outer sheath
Polyvinyl chloride (PVC)
Cable geometry
Round
Eca
None
None
None
Flame retardant
According to IEC/EN 60332-1-2
Low smoke (according to EN 61034-2)
No
Outer diameter approx.
(mm)
9.6
Min. permitted bending radius, moving application/free movement
(mm)
144
Min. permitted bending radius, stationary application/permanent installation
(mm)
57.6
Permitted cable outer temperature during assembling/handling
(°C)
-5 - 70
Permitted cable outer temperature after assembling without vibration
(°C)
-40 - 80
Yes
No
No
No
No
No
Low smoke according to IEC 61034-2
No
No
Halogen free according to IEC 60754-2
No
No
Stock and logistics
Packaging
ring
Weight
0.14 kg
HS code
85444993
